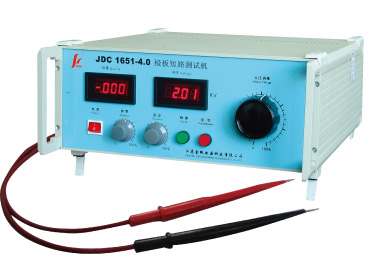

JDC 1651-4.0 Plate Short Circuit Tester
| Application: |
| Test short circuit between positive plate and negative plate of acid-unfilled battery. |
| Features: |
|
High voltage pulse testing method with fast speed is insensitive for environmental humidity. It is safe for operator to use. |
| Functions: |
| Fast and precise detect can be used for mass-production line; detect short circuit before sealing case-cover, which can guarantee battery quality; its high-voltage test probe provides easiness, safety and efficiency; when a defective battery has been found, it will send out an audible and visual alarm and switch off high voltage; digital meter displays actual output high voltage; voltage can be selected by voltage knob. Its durable and solid state design brings high-volume test. |
| Technical Parameters: |
1. Input power: AC 220V ，50HZ
2. Peak value of output pulse voltage: 400-4000V
3. Test time for each cell:1s
4．Breakdown Resistance sensitivity: min 100Ώ | |
 |
| |
