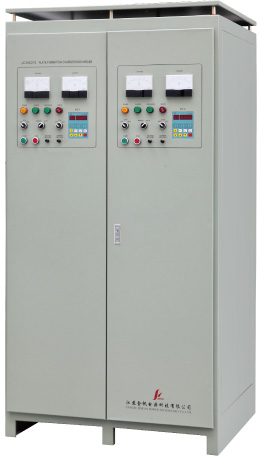

μC-2000S/KGCFS/KGCFSH Intelligent Battery Formation Charger/Discharger
| Application: |
| For varlous of medium/large lead add battery formation and recharge. KGCFSH type is low harmonic and environmental-protection type. |
| Features: |
|
With fully digital control technology which is based on SCR, one microprocessor controls one circuit. Its most notable features are: easy operation, powerful performance, high reliability, discharge with feedback to grid. Microprocessor programming is very easy, operators can manipulate the equipment just by the panel. It is more energy-save comparing with other same kind machines. It is no need to use Harmonic Pollution Treatment System for KGCFSH machine, because of its low harmonic. |
| Functions: |
| Setting and storing many formation modes and parameters of different types of battery and setting for one step control. Providing the following operation modes: constant-current charging, constant-voltage charging, constant-voltage with current-limited charging, constant-current with voltage-limited discharging, cycling, pause and pros and cons of plate controlling; State shifting by time setting/voltage setting/Ah setting, recording operation data at setting time; Protecting against overcurrent, overvoltage and open circuit. Power off data logging, and automatic power on recovering; Displaying on LED operation data and cause of troubles. Central network control and data processing when connected with PC via interface. |
| Technical Parameters: |
1. Range of current controlled:1%～100%F.S
2. Range of voltage controlled: 10%～100%F.S
3. Precision of current/voltage: ≤0.5% F.S
4. Time precision: ≤15s/24h
5. KGCFSH Harmonic content: ≤5%(meet national harmonic requirement) | |
 |
| |
| Specifications： |
| Models |
Output current |
Output voltage |
Circuits |
Size(cm) |
Weight(kg) |
| w |
h |
d |
| μC-2000S、KGCFS、KGCFSH 10A/320V |
10A |
320V |
12、24 |
100 |
200 |
80 |
700、850 |
| μC-2000S、KGCFS、KGCFSH 12A/320V |
12A |
320V |
6、12 |
100 |
200 |
80 |
650、720 |
| μC-2000S、KGCFS、KGCFSH 15A/320V |
15A |
320V |
6、12 |
100 |
200 |
80 |
680、750 |
| μC-2000S、KGCFS、KGCFSH 20A/320V |
20A |
320V |
6、12 |
100 |
200 |
80 |
700、800 |
| μC-2000S、KGCFS、KGCFSH 25A/320V |
25A |
320V |
6、12 |
100 |
200 |
80 |
750、900 |
| μC-2000S、KGCFS、KGCFSH 30A/320V |
30A |
320V |
4、6 |
100 |
200 |
80 |
700、750 |
| μC-2000S、KGCFS、KGCFSH 40A/320V |
40A |
320V |
4、6 |
100 |
200 |
80 |
750、800 |
| μC-2000S、KGCFS、KGCFSH 60A/320V |
60A |
320V |
2、4 |
100 |
200 |
80 |
820、800 |
| μC-2000S、KGCFS、KGCFSH 100A/320V |
100A |
320V |
1、2 |
100 |
200 |
80 |
590、800 |
| μC-2000S、KGCFS、KGCFSH 150A/320V |
150A |
320V |
1、2 |
100 |
200 |
80 |
650、880 |
| μC-2000S、KGCFS、KGCFSH 200A/320V |
200A |
320V |
1 |
100 |
200 |
80 |
700 |
| μC-2000S、KGCFS、KGCFSH 300A/320V |
300A |
320V |
1
|
100 |
200 |
80 |
780 |
| μC-2000S、KGCFS、KGCFSH 350A/320V |
350A |
320V |
1 |
100 |
200 |
80 |
850 |
| μC-2000S、KGCFS、KGCFSH 400A/320V |
400A |
320V |
1 |
100 |
200 |
80 |
950 |
| μC-2000S、KGCFS、KGCFSH 500A/320V |
500A |
320V |
1 |
100 |
200 |
80 |
1150 | |
